1mm Translucent Polystyrene diffuser sheet LED light frosted PS plate custom cutting

1.  Polystyrene diffusion sheet
    The ps diffusion plate is a material of the ps (polystyrene) plate species, One of the p m a of acrylic (pmma), pc, pp, ps, With a certain fog degree, light transmittance, Optical characteristics of plastic sheets, such as the refractive index, Can effectively convert point or line light sources into soft, uniform surface light source, On the premise of achieving a good light transmittance, At the same time, with a good light source lattice shading, Plus, the price is relatively affordable, Therefore, it is widely used in the booming lcd-tv and led lighting products, A choice of optical diffusion material is added for the secondary light distribution of led lighting products.

     By chemical or physical means, using light in the way encounter two refractive index medium, refraction, reflection and scattering of physical imagination, through adding inorganic or organic light diffagent, perhaps through the appearance of the substrate micro characteristic structure of the array arrangement artificial adjust light, make light in different direction of refraction, reflection, and scattering, and then change the route of light, to produce the effect of optical diffusion.


2.  Polystyrene diffuser sheet feature

      Features of the ps diffusion plate 1. Relatively speaking, low price; poor weather tolerance than pmma, brittle and yellow deformation in outdoor moisture and ultraviolet environment; about 1.05, lighter than pmam (1.2), pp (0.96); suitable for machining and hot forming, it is recommended not to do laser cutting. 2. External frosted treatment, wear-resistant and stable scratch resistance, advocate the use of ambient temperature of 60-80 degrees.Good size stability, mold production shrinkage rate is within 0.45% scale.It has a good external antistatic function to prevent dust adsorption. 3. Light transmittance: 60% -80% (adjustable scale).The ps diffusion plate is widely used in liquid crystal display, led lighting and imaging display system. Its main function is to make the incident light diffuse and achieve softer and uniform irradiation.


3.   The development trend of future technology and application of Polystyrene diffuser plate

       With the rapid development of the LED lighting industry, LED lighting products have become more mature and stable, and the requirements of products have gradually changed from the pursuit of high light efficiency and low cost to the pursuit of light quality and light health. As a partner of high-quality long-life LED light sources, PC diffusion The future development of the board is to cooperate with the LED light source to quickly realize the improvement of light quality and light health.

Light quality is the pursuit of light comfort when LED lighting is lit, reducing or even eliminating glare from lamps and improving quality]; light health is the pursuit of LED lighting to achieve lighting while controlling the intensity of blue light and ultraviolet radiation, providing additional functions , reduce light pollution and give lamps the function of improving the environment, protect people's health, and meet people's needs for a better life.

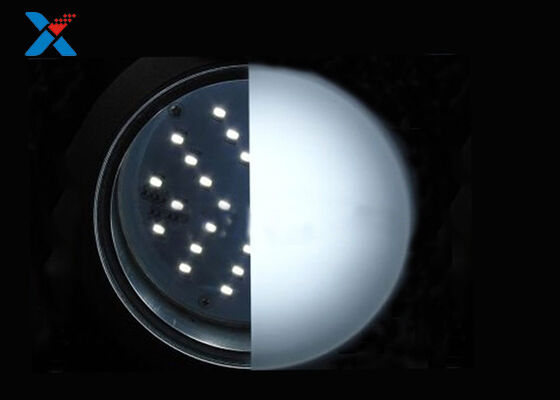

4.   Polystyrene light diffusion sheet Application


5.  XH Company and Production Line

7.  Package and shipping

  One piece of acrylic sheet package: double-sided covered with kraft paper or PE film, the cover film does not have any LOGO of our company.
  7.2. Tray package: the total weight of each pallet is about 2 tons, the bottom is wooden pallet or iron pallet, and the surrounding is packed with corrugated paper.
  7.3. The packaging method of the whole container: 20-23 tons (about 3000 pieces) 20-foot container, 10-12 pallets.
