Extruded 4x8 Acrylic Sheet Plastic Perspex Panels Cut To Size

Extruded 4x8 Acrylic Sheet Plastic Perspex Panels

High Clarity PMMA Panels Cut to Size for Industrial Equipment

1.Product Overview

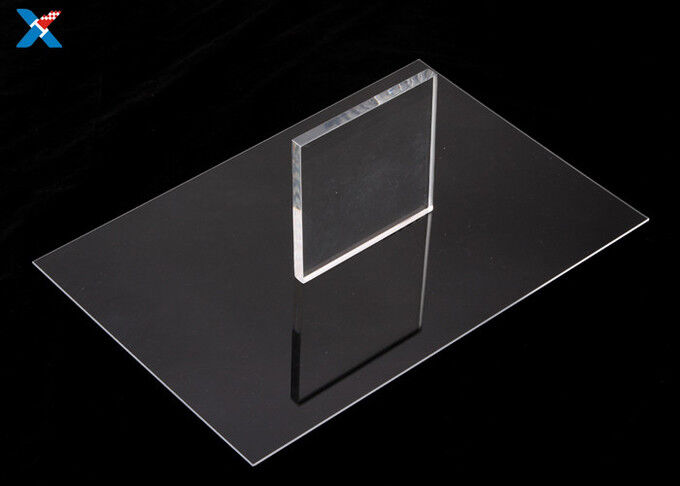

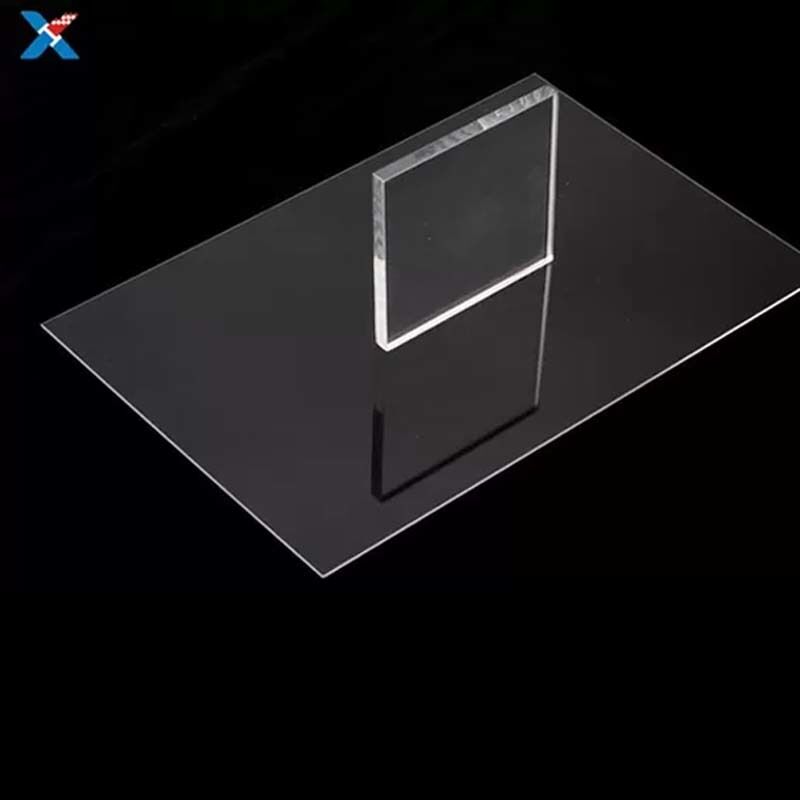

Extruded 4×8 Acrylic Sheet is a high-clarity PMMA plastic panel designed for industrial machine guards,

equipment enclosures, and protective covers.
With a standard size of 4×8 ft (1220 × 2440 mm) and cut-to-size service available, this acrylic sheet is

widely used by industrial equipment manufacturers, automation integrators, and machine guard fabricators.

Compared with glass, acrylic sheets are lighter, safer, and easier to fabricate, making them an ideal solution

for industrial viewing and protection applications.

2. Why Choose Extruded Acrylic Sheet for Machine Guards?

2.1. High Optical Clarity for Equipment Monitoring

Light transmission up to 92%

Clear visibility of machine operation, indicators, and sensors

Ideal for CNC machines, automation lines, and inspection windows

Extruded acrylic panels allow operators to visually monitor equipment safely without opening the

guard.

2.2 Lightweight & Safer Than Glass

About 50% lighter than glass

Shatter-resistant (no sharp fragments)

Reduces load on hinges, frames, and sliding doors

This makes acrylic sheets suitable for frequently opened machine guard doors and access panels.

2.3.Stable Thickness for OEM & Batch Production

Extrusion process ensures consistent thickness

Standard 4×8 ft sheets for efficient nesting and cutting

Suitable for long-term OEM supply and repeat orders

2.4. Easy Fabrication & Installation

Can be cut, drilled, and CNC machined

Smooth surface with protective film on both sides

Available cut to size, ready for direct installation

Laser cutting is possible but requires controlled parameters to avoid edge melting.

2.5.Typical Industrial Applications

Machine safety guards

Industrial equipment enclosures

Automation line protective covers

Electrical cabinet viewing panels

Laboratory equipment shields

3.Technical Specifications

4.Acrylic Sheet vs Other Materials (Selection Guide)

Acrylic Sheet vs Glass

✔ Lighter and safer

✔ Easier to fabricate

✖ Lower scratch resistance than glass

Acrylic Sheet vs Polycarbonate (PC)

✔ Lower cost

✔ Better surface hardness

✖ Lower impact resistance than PC

For standard industrial machine guards and observation panels, extruded acrylic offers the best

balance between performance and cost.

5. Recommended Use Conditions

Indoor industrial environments

Normal mechanical protection and visual guarding

Not recommended for High-impact or anti-explosion applications

Long-term outdoor UV exposure

For high-impact safety requirements, polycarbonate sheet is recommended.

6.Why Work With Us

Consistent quality extruded acrylic sheets

Standard 4×8 ft stock available

Precision cut-to-size service

Stable supply for OEM projects

Technical support for material selection

7.Frequently Asked Questions

Is extruded acrylic suitable for machine guards?
Yes, it is widely used for industrial machine guards and viewing panels where high transparency and moderate

protection are required.

Can you cut the acrylic sheet to custom sizes?
Yes, we offer cut-to-size services based on drawings or specified dimensions.

Is acrylic impact-resistant enough for industrial use?
Acrylic is suitable for general protection and observation. For high-impact or safety-critical environments,

polycarbonate should be considered.

8. Request a Quote or Technical Support

To receive an accurate quotation or material recommendation, please provide:

Application details

Required thickness

Cut sizes or drawings

Estimated annual quantity

Our team will help you select the most cost-effective acrylic sheet solution for your machine guard

application.
