Custom 1220*2440mm 1220*1830mm Acrylic Light Guide Plate Edge Lit Design

Custom 1220*2440mm 1220*1830mm Acrylic Light Guide Plate Edge Lit Design

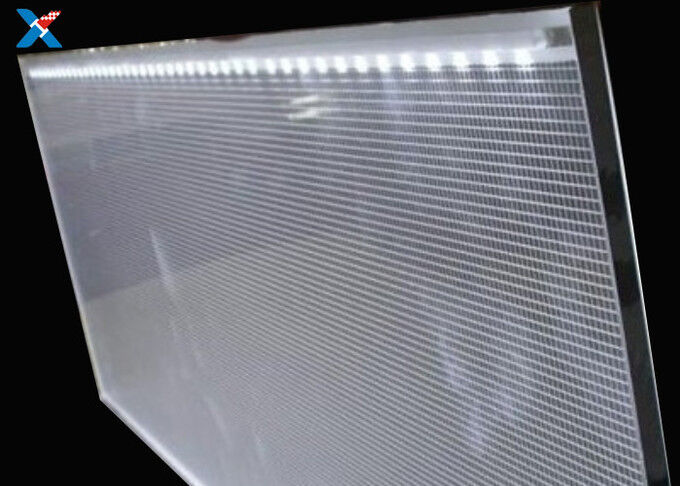

Transparent acrylic light guide plate LED light edge lit design clear plastic sheets

1. Product Overview

In modern luminaire design, optical uniformity and material stability are the cornerstones of quality. Our Edge-

lit Acrylic Light Guide Plates (LGP) are engineered from 100% optical-grade PMMA resin and processed

with advanced Laser Dotting Technology.

Designed specifically for lighting system manufacturers, our standard large-format sheets (1220x2440mm and

1220x1830mm) provide maximum versatility for ultra-slim office panels, architectural luminous ceilings, and

bespoke linear lighting systems.

2. Core Advantages: Why Lighting Manufacturers Choose Us

A. Superior Uniformity & Light Extraction Efficiency

Optical Precision: Utilizing proprietary dot-matrix algorithms, our LGPs achieve a light uniformity of over

90%, effectively eliminating "hot spots," dark zones, or "zebra stripes."

High Transmittance: Made from premium Mitsubishi/Chimei optical PMMA, our plates offer 92-93% light

transmission, maximizing lumen output per watt to help your fixtures meet energy efficiency certifications

(DLC/ErP).

B. Versatile Formats & Reduced Material Waste

Large-Format Standards: Available in 1220*2440mm and 1220*1830mm. These sizes allow for optimized

nesting and cutting, significantly reducing scrap rates and lowering your unit production costs.

Flexible Thickness: Options range from 3mm to 12mm to meet structural requirements for everything from

ultra-thin lightboxes to heavy-duty architectural installations.

C. Long-Term Stability & Anti-Yellowing

100% Virgin Material: We guarantee zero recycled content. This ensures our plates remain crystal clear

under the constant thermal stress of LED chips, with a lifespan of 5-8 years without yellowing or

embrittlement.

Precision Edge Finishing: Mirror-polished edges ensure maximum light coupling efficiency from the LED

source into the plate.

3. Technical Specifications

4. Key Applications

Our LGPs are the trusted core component for:

Commercial LED Panel Lights: Creating soft, glare-free environments for offices and schools.

Public Infrastructure Signage: High-brightness backlighting for airports, subways, and railway wayfinding

systems.

Architectural Integrated Lighting: Luminous ceilings for laboratories, cleanrooms, and high-end retail

interiors.

Smart Furniture Components: Integrated shelf lighting for luxury wardrobes and display cabinets.

5. FAQ for Manufacturers

Q1: How do you optimize the laser dotting pattern for our specific LEDs?

A: We customize the dot density and gradient based on your LED specifications (SMD type, LEDs per meter)

and the distance between light sources to ensure a perfectly balanced output.

Q2: Can you maintain brightness across a full 2440mm span?

A: Yes. By utilizing double-sided entry and a specialized non-linear dot pitch, we ensure high lux levels even at

the center of large-format panels.

6.  Package and shipping

6.1. One piece of acrylic sheet package: double-sided covered with kraft paper or PE film, the cover film does

not have any LOGO of our company.

6.2. Tray package: the total weight of each pallet is about 2 tons, the bottom is wooden pallet or iron pallet,

and the surrounding is packed with corrugated paper.

6.3. The packaging method of the whole container: 20-23 tons (about 3000 pieces) 20-foot container, 10-12

pallets.
